W3LPL Broad Side End Fire array

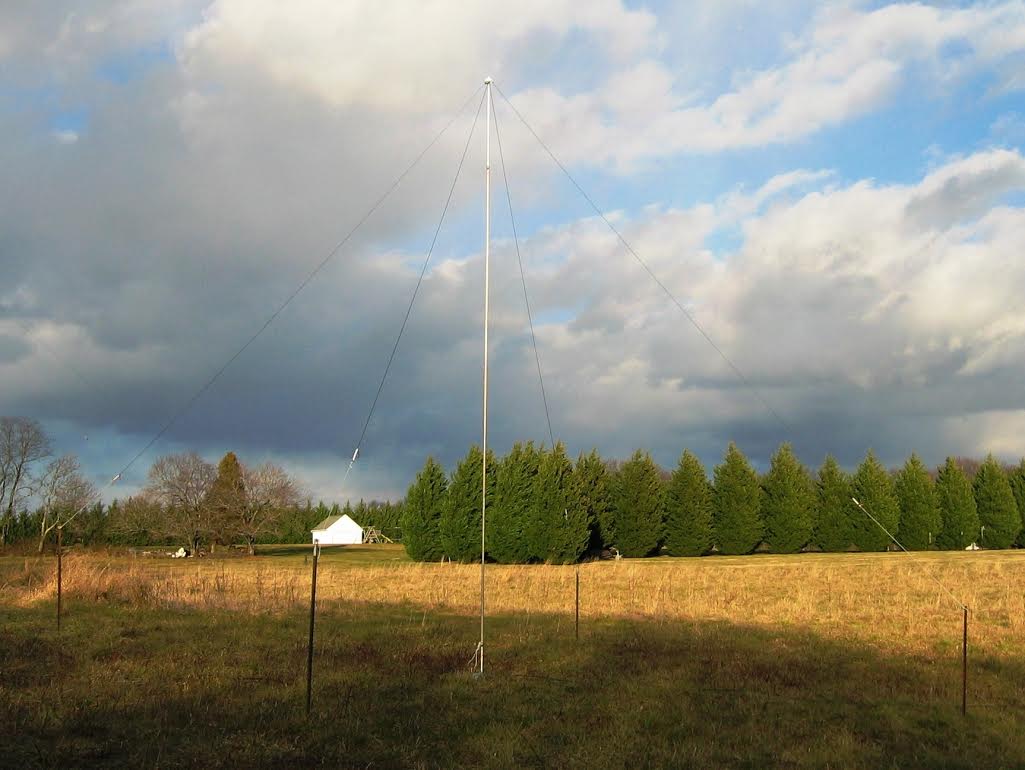

There's lots of interest in having the article available on the PVRC homepage. Here's the text, the three photos referenced in the text are attached. tks! 73 Frank W3LPL My initial implementation of a 160 meter Broad Side - End Fire (BSEF) receiving array is now in use. Based on initial testing, the 3 dB beam width is about 45 degrees, similar to my 900 foot Beverage and much narrower than my full size 4-square transmitting antenna. The BSEF sidelobes are about 6 to 10 dB better than the 900 foot Beverage depending on the azimuth and elevation of signals arriving through the sidelobes. Signal strength is essentially identical to my 900 foot Beverage. The design is based on the BSEF array described on W8JI's website: http://www.w8ji.com/small_vertical_arrays.htm and the implementation of the W5ZN/N4HY 8-circle array described at: http://www.w5zn.org/files/Design%20Construction%20&%20Evaluation%20of%20the%208%20Circle%20Vertical%20Array%20for%20Low%20Band%20Receiving%20Rev%203A%2002-25-2011.pdf The first photo shows one of the four 25 foot verticals located at the corners of a 300 foot by 130 foot rectangle oriented broadside to Europe. Four 25 foot umbrella wires are attached to the top of each vertical to reduce the impedance at the base of the vertical. The vertical is mounted on a 1.25 inch diameter phenolic rod mounted on 24 inches of 1 inch diameter rebar driven into the ground. The ends of the umbrella wires are terminated in glazed porcelain insulators. A short piece of light rope attaches the umbrella insulators to the tops of a seven foot fence posts to avoid deer collisions with the umbrella wires. The second photo is the weatherproof enclosure containing the inductive/resistive matching assembly at the base of each vertical. It consists of an 18 microhenry molded inductor in series with a 10 microhenry inductor, then in series with a few turns of wire wound on an Amidon T50-2 powdered iron toroid. Turns can easily be added or removed from the toroid to set the resonance of the each vertical to exactly 1840 kHz. A series 36 ohm (approximate value) resistor provides a 50 ohm resistive match to facilitate alignment by use of an MFJ-259B Antenna Analyzer, the exact resistor value is selected during alignment to provide a 50 ohm resistive match. A 25 ohm resistor connects the the 50 ohm BNC test connector to an F-connector for connection to 225 feet of 75 ohm RG-6 coaxial cable running to the combiner at the center of the array. Eight 70 foot radials are laid on the surface of the ground to stabilize the ground resistance during both wet and dry soil conditions. The third photo shows the weatherproof enclosure containing three RF combiners and a phase inversion transformer. Signals from the two front verticals are combined by a Minicircuits ZFSC-2-1-75 Splitter. Likewise signals from the two rear verticals are combined by another ZFSC-2-1-75. A third ZFSC-2-1-75 combines signals from the front pair of verticals and the rear pair of verticals. The proper phase relationship between the front and rear pairs of verticals is provided by the 180 degree phase inversion transformer visible at the right of the photo and 68 feet of RG-6 coaxial cable. Use of RF combiners for the BSEF array was suggested by W1MK.
Umbrella Vertical
Matching Components
RF Combiner
